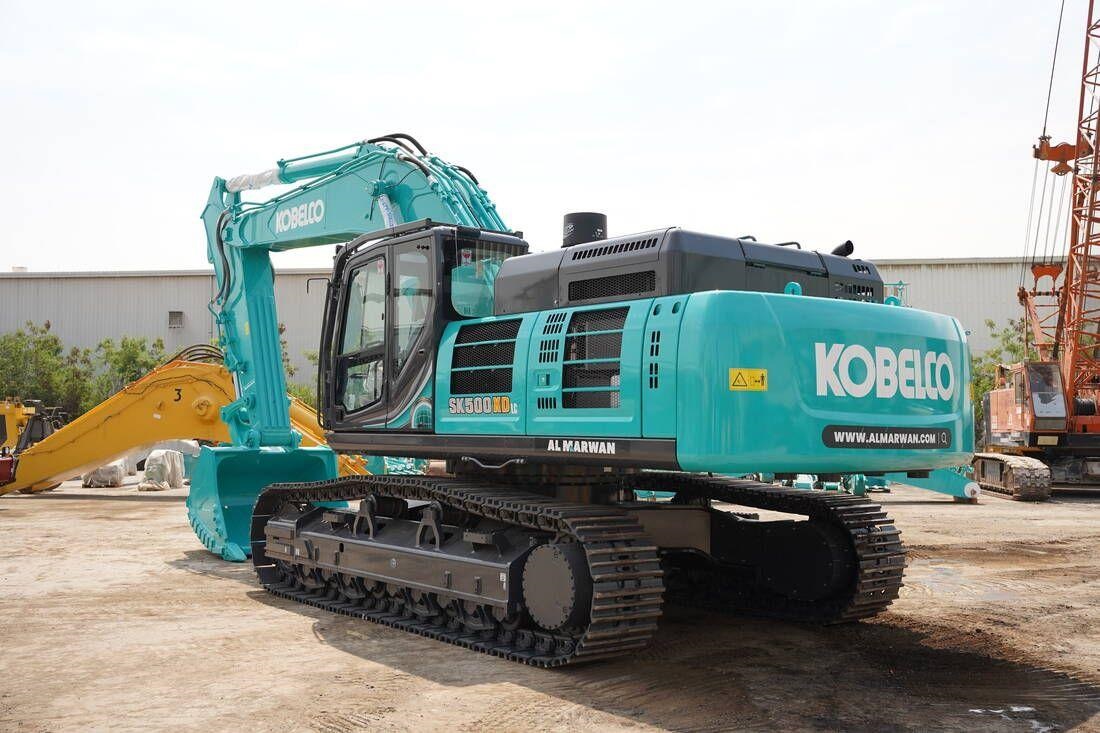

KOBELCO SK500XD-11
Specifications & Parameters
| Engine Model | HINO E13CBB |
| Rated Power(kW) | 300 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 1700 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 10.3-11.6 |
| Engine Displacement(L) | 12.91 |
| Emisson | Stage V |
| Track width(mm) | 600 |
| Fuel Tank(L) | 640 |
| Hydraulic Tank(L) | 375 |
| Travel Speed(km/h) | 5.4 |
| Bucket Capacity(m³) | 2.8 |
| Bucket Digging Force(kN) | 267 |
| Boom Length(mm) | 7000 |
| Stick Length(mm) | 2600 |
| Maximum Excavation Radius(mm) | 11690 |
| Maximum Digging Height(mm) | 11280 |
| Maximum Digging Depth(mm) | 7370 |
| Specifications(mm) | 12070×3580×3790 |
| Operating Weight(kg&ton) | 51100 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2022 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
51.1t XD extra heavy-duty mining reinforced excavator, overall dimension 12070×3580×3790mm
Full thickened heavy track frame, 600mm equal-height double grouser steel tracks, optional 800mm mud shoes for soft muddy ground
Wide bucket range from 2.1~3.0m³ specially designed for hard rock quarry, mass high-volume loading & heavy demolition
Two arm choices (6.5m ME mining short arm / 7.0m standard arm), two stick options (2.6m ME short stick / 3.0m standard stick), fully reinforced HD boom & arm for long harsh mining shifts
HINO 6-cylinder common rail turbo engine, max torque 1700N·m, fuel consumption 9.2–13.5 L/h
375L hydraulic tank, factory standard heavy breaker piping & proportional quick hitch dual auxiliary circuit
Triple working modes + AIS auto idle, 22% fuel saving vs SK500XD-10, full Stage V emission certification
Interested in used KOBELCO SK500XD-11 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
