Used KOBELCO SK500XD-10
Parameters
| Engine Model | HINO P11C-UP |
| Rated Power(kW) | 257 |
| Engine Revolutions(rpm) | 1850 |
| Maximum Torque(N·m) | 1400 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 10.7-12 |
| Engine Displacement(L) | 10.52 |
| Emisson | Tier3 |
| Track width(mm) | 600 |
| Fuel Tank(L) | 638 |
| Hydraulic Tank(L) | 371 |
| Travel Speed(km/h) | 5.4 |
| Bucket Capacity(m³) | 2.8 |
| Bucket Digging Force(kN) | 285 |
| Boom Length(mm) | 7000 |
| Stick Length(mm) | 3000 |
| Maximum Excavation Radius(mm) | 11680 |
| Maximum Digging Height(mm) | 11250 |
| Maximum Digging Depth(mm) | 7270 |
| Specifications(mm) | 11980×3320×3800 |
| Operating Weight(kg&ton) | 53000 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2022 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
Features
53t XD extra heavy-duty mining reinforced excavator, overall dimension 11980×3320×3800mm
Full thickened heavy track frame, 600mm triple grouser steel tracks, optional 800mm mud shoes for soft muddy ground
Wide bucket range from 2.5~3.4m³ specially designed for hard rock quarry, mass high-volume loading & heavy demolition
Two arm choices (2.6m ME mining short arm / 3.0m standard arm), fully reinforced HD boom & arm for long harsh mining shifts
HINO 6-cylinder turbo direct injection engine, max torque 1400N·m, fuel consumption 9.6–14.0 L/h
371L hydraulic tank, factory standard heavy breaker piping & proportional quick hitch dual auxiliary circuit
Triple working modes + AIS auto idle, 18% fuel saving vs SK480LC-8, Tier3/Stage V dual emission options
Interested in this excavator? Leave us a message through the contact form on our website or click the WhatsApp button for a faster response from our sales team. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry

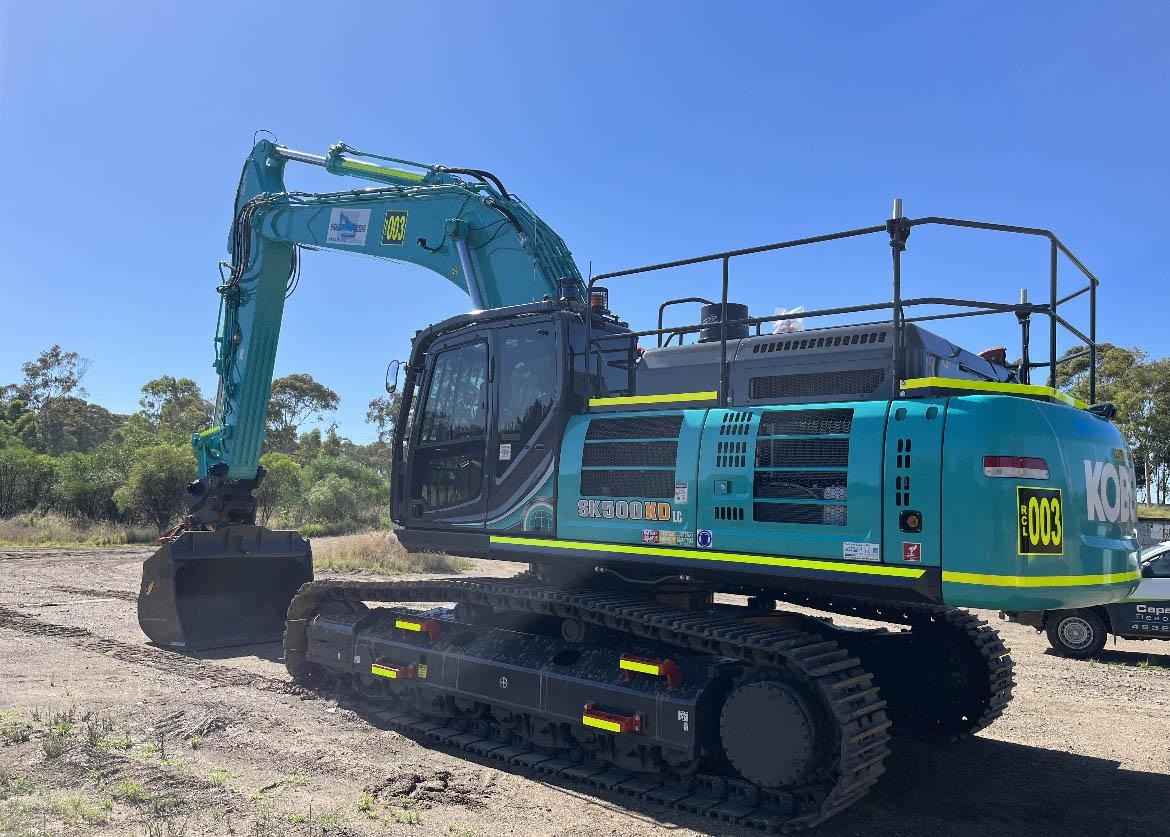

Photos
