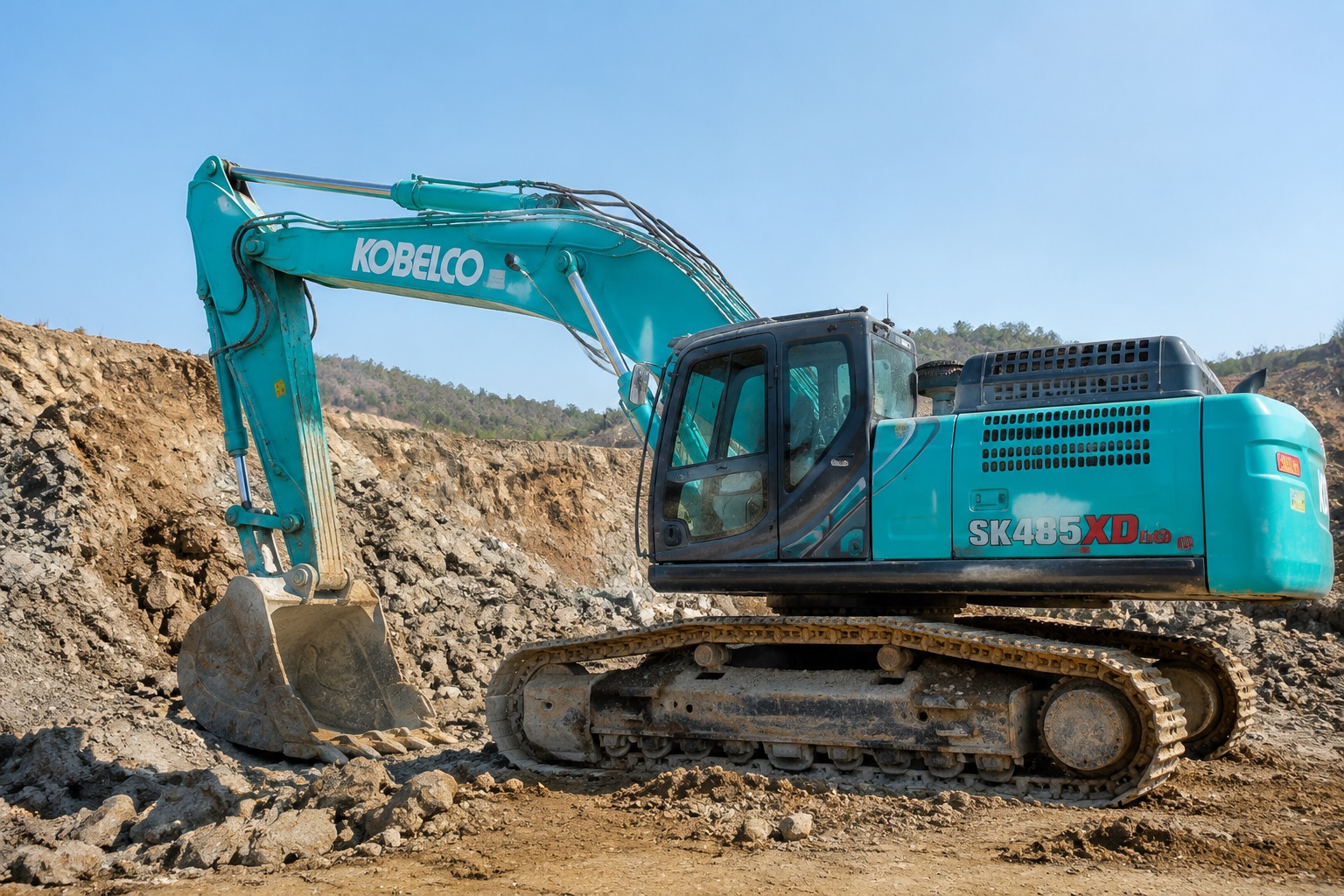

Used KOBELCO SK485XD-10
Parameters
| Engine Model | HINO P11C-UP |
| Rated Power(kW) | 243 |
| Engine Revolutions(rpm) | 1850 |
| Maximum Torque(N·m) | 1400 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 10.9-12.2 |
| Engine Displacement(L) | 10.52 |
| Emisson | Stage V |
| Track width(mm) | 600 |
| Fuel Tank(L) | 650 |
| Hydraulic Tank(L) | 300 |
| Travel Speed(km/h) | 5.4 |
| Bucket Capacity(m³) | 2.6 |
| Bucket Digging Force(kN) | 281 |
| Boom Length(mm) | 7000 |
| Stick Length(mm) | 3000 |
| Maximum Excavation Radius(mm) | 11360 |
| Maximum Digging Height(mm) | 10870 |
| Maximum Digging Depth(mm) | 7280 |
| Specifications(mm) | 12600×3580×3620 |
| Operating Weight(kg&ton) | 52000 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2023 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
Features
52t XD extra heavy-duty mining reinforced excavator, overall dimension 12600×3580×3620mm
Extra wide & long reinforced crawler base, 600mm double grouser steel tracks, optional 800/900mm mud shoes for soft muddy ground
Wide bucket range from 2.30~3.00m³ specially designed for hard rock quarry, mass high-volume loading & heavy demolition
Two arm choices (2.6m ME mining short arm / 3.0m standard arm), fully thickened HD boom & arm for long harsh mining shifts
HINO 6-cylinder turbo direct injection engine, max torque 1400N·m, fuel consumption 9.8–14.2 L/h
300L hydraulic tank, factory standard heavy breaker piping & proportional quick hitch dual auxiliary circuit
Triple working modes + AIS auto idle, 19% fuel saving & 20% productivity up vs SK480LC-8, Tier3/Stage V dual emission options
