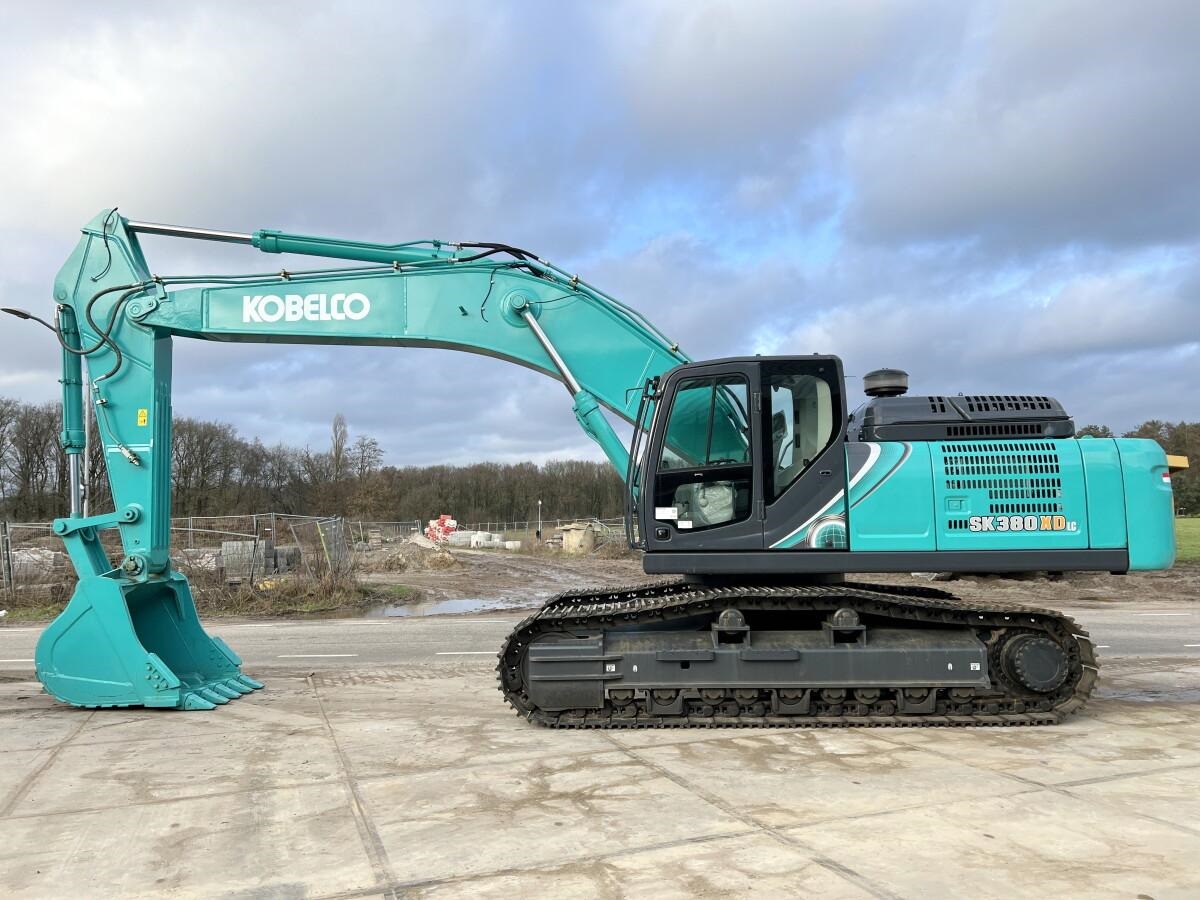

Used KOBELCO SK380XD-10
Parameters
| Engine Model | HINO J08ETM-KSDL |
| Rated Power(kW) | 197 |
| Engine Revolutions(rpm) | 2100 |
| Maximum Torque(N·m) | 969 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 9.9-11 |
| Engine Displacement(L) | 7.684 |
| Emisson | Tier3 |
| Track width(mm) | 600 |
| Fuel Tank(L) | 503 |
| Hydraulic Tank(L) | 245 |
| Travel Speed(km/h) | 5.6 |
| Bucket Capacity(m³) | 1.9 |
| Bucket Digging Force(kN) | 229 |
| Boom Length(mm) | 6500 |
| Stick Length(mm) | 3300 |
| Maximum Excavation Radius(mm) | 10400 |
| Maximum Digging Height(mm) | 10230 |
| Maximum Digging Depth(mm) | 7010 |
| Specifications(mm) | 11380×3190×3230 |
| Operating Weight(kg&ton) | 38500 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2023 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
Features
38.5t XD extra heavy-duty mining reinforced excavator, overall dimension 11380×3190×3230mm
Full thickened heavy undercarriage, 600mm HD triple grouser steel tracks, optional 800mm mud shoes for soft ground
Bucket range from 1.60~2.30m³ specially designed for quarry rock breaking & heavy mass loading
Two arm options (short 2.6m mining arm / standard 3.3m arm), fully reinforced HD boom & arm for long harsh mining shifts
HINO 6-cylinder turbo direct injection engine, max torque 998N·m, fuel consumption 9.0–12.8 L/h
245L hydraulic tank, factory standard breaker piping + proportional quick hitch auxiliary circuit
Triple working modes + AIS auto idle, 14%–20% fuel saving vs SK350LC-10, Tier3/Stage V dual emission options
Interested in this excavator? Leave us a message through the contact form on our website or click the WhatsApp button for a faster response from our sales team. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
