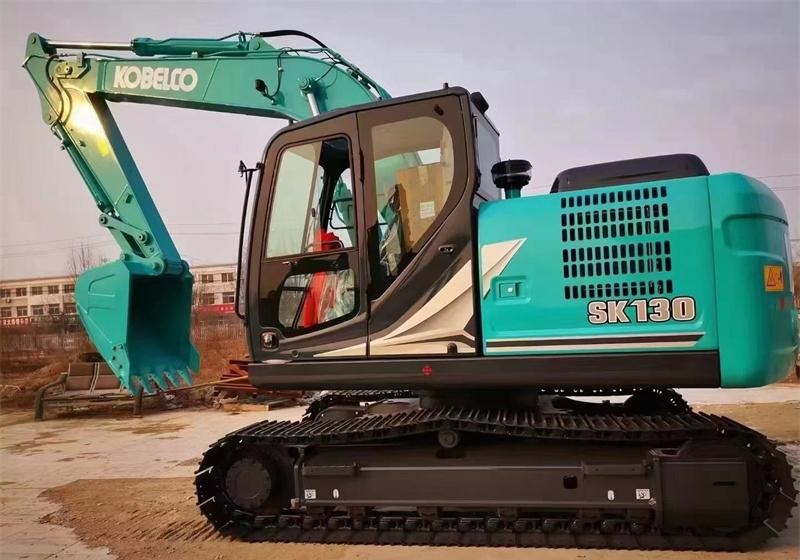

KOBELCO SK130-10
Specifications & Parameters
| Engine Model | D04FR-KDP2TAAC |
| Rated Power(kW) | 74 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 365 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 5.5-6.1 |
| Engine Displacement(L) | 4.249 |
| Emisson | Stage V |
| Track width(mm) | 500 |
| Fuel Tank(L) | 271 |
| Hydraulic Tank(L) | 104 |
| Travel Speed(km/h) | 5.8 |
| Bucket Capacity(m³) | 0.5 |
| Bucket Digging Force(kN) | 92.3 |
| Boom Length(mm) | 3700 |
| Stick Length(mm) | 2380 |
| Maximum Excavation Radius(mm) | 8340 |
| Maximum Digging Height(mm) | 8500 |
| Maximum Digging Depth(mm) | 5520 |
| Specifications(mm) | 7790×2490×2710 |
| Operating Weight(kg&ton) | 13100 |
| Size Class | Small |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2019 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
The 13.2‑ton KOBELCO SK130‑10 is standard‑track chassis unit, built for general contracting projects. Compared to LC long‑undercarriage versions, it features narrower body width, lighter operating weight and simpler highway transport, performing reliably on well‑bearing solid ground.
MITSUBISHI D04FR turbo intercooled 4‑cylinder direct‑injection Tier3 engine delivers steady low‑speed torque. Optimized for variable‑grade fuels across Africa, Latin‑America and Southeast‑Asia markets, it runs without urea after‑treatment to cut routine maintenance workload.
Double variable‑displacement main‑pump hydraulic system integrates arm regeneration function to lower power waste. Three‑mode power selection (H/S/ECO) adapts to heavy‑digging, general earthwork and fuel‑saving fine‑operation scenarios, achieving smooth compound movements for site preparation, trenching and light rock breaking.
Reinforced boom and arm assembly comes with optional rock guard protection, enhancing impact resistance under cyclic shock loads. Factory‑reserved auxiliary hydraulic lines support breakers and quick couplers, allowing fast switching between digging and demolition attachments.
Single‑layer large‑flow cooling core avoids dust accumulation, securing stable power output under high‑temperature conditions. Color LCD monitor displays real‑time fuel consumption and service reminders. Global spare‑parts availability keeps operating expenses low, with decent residual value for rental‑oriented fleets.
Interested in used KOBELCO SK130-10 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
