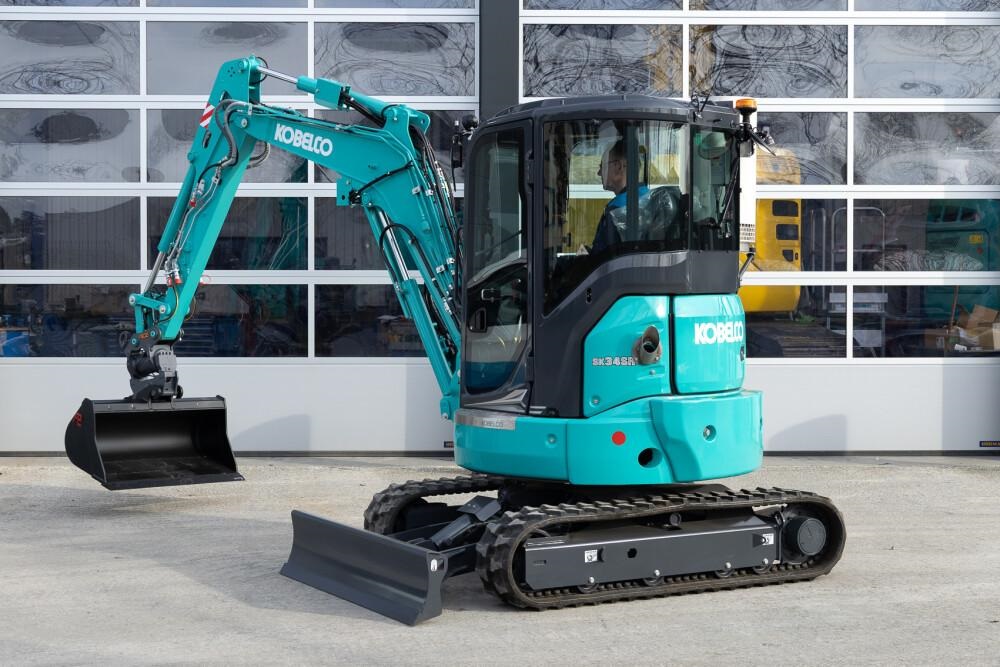

KOBELCO SK34SR-7
Specifications & Parameters
| Engine Model | YANMAR 3TNV88 |
| Rated Power(kW) | 18.9 |
| Engine Revolutions(rpm) | 2400 |
| Maximum Torque(N·m) | 88 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 2.1-2.3 |
| Engine Displacement(L) | 1.642 |
| Emisson | Stage V |
| Track width(mm) | 300 |
| Fuel Tank(L) | 42 |
| Hydraulic Tank(L) | 20.4 |
| Travel Speed(km/h) | 4.4 |
| Bucket Capacity(m³) | 0.08 |
| Bucket Digging Force(kN) | 32.2 |
| Boom Length(mm) | 1910 |
| Stick Length(mm) | 1320 |
| Maximum Excavation Radius(mm) | 5200 |
| Maximum Digging Height(mm) | 4820 |
| Maximum Digging Depth(mm) | 3280 |
| Specifications(mm) | 4790×1700×2630 |
| Operating Weight(kg&ton) | 3560 |
| Size Class | Mini |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2021 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
The 3.4‑ton KOBELCO SK34SR‑7 zero‑tail mini excavator features retractable undercarriage design. Track width can be narrowed to pass narrow doorways and tight passages, well‑suited for backyard renovation, greenhouse projects, pipeline laying and indoor demolition work.
YANMAR 3TNV88 three‑cylinder water‑cooled direct‑injection engine delivers steady power output, supports Tier3 / Stage‑V emission versions. It adapts to variable‑quality fuels for overseas markets; iNDr low‑noise cooling system lowers noise pollution in residential‑area construction.
Integrated‑flow hydraulic pump system improves bucket breakout force, delivers responsive and smooth combined movements. ECO working mode plus auto‑idle function cuts fuel consumption up to 25%, ideal for long‑hour light‑duty cyclic operations.
Side‑swing boom allows digging flush against walls without blind zones. Standard and optional long stick meet different digging‑depth demands. Factory‑installed auxiliary hydraulic piping supports breakers, augers and grapples for fast attachment switching.
Rubber track pads protect lawn, asphalt and paved ground from scratches. ROPS‑FOPS certified cabin improves operator safety. Simplified ground‑level service points reduce daily maintenance workload. Global spare‑parts supply guarantees stable residual value for rental fleets.
Interested in used KOBELCO SK34SR-7 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
Photos
