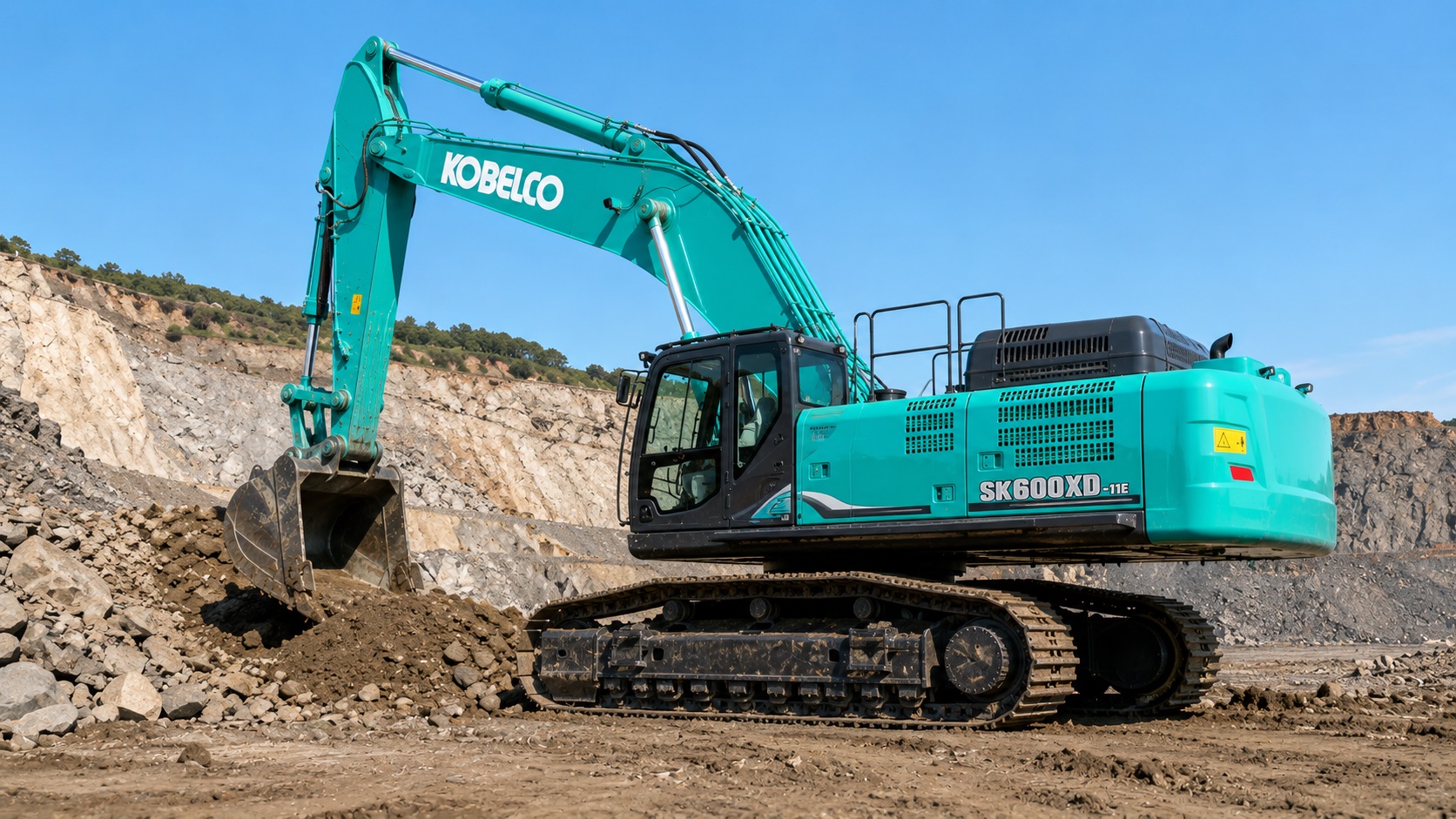

KOBELCO SK600XD-11E
Specifications & Parameters
| Engine Model | HINO P11C-VK |
| Rated Power(kW) | 348 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 2000 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 19-24 |
| Engine Displacement(L) | 10.52 |
| Emisson | Tier 4 |
| Track width(mm) | 700 |
| Fuel Tank(L) | 850 |
| Hydraulic Tank(L) | 255 |
| Travel Speed(km/h) | 4.1 |
| Bucket Capacity(m³) | 2.8 |
| Bucket Digging Force(kN) | 342 |
| Boom Length(mm) | 6900 |
| Stick Length(mm) | 3000 |
| Maximum Excavation Radius(mm) | 11430 |
| Maximum Digging Height(mm) | 8150 |
| Maximum Digging Depth(mm) | 7480 |
| Specifications(mm) | 12680×3740×3920 |
| Operating Weight(kg&ton) | 60400 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2023 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
The 60.4‑ton KOBELCO SK600XD‑11E XD‑series heavy‑duty crawler excavator is purpose‑built for quarry rock breaking, stone mining and large‑volume earth‑moving projects. Optimized for hammer‑focused heavy cyclic operations, it delivers outstanding impact resistance, high‑output performance and long‑term durability under harsh mine‑site conditions.
Isuzu 6WG1 six‑cylinder turbo‑intercooled direct‑injection diesel engine delivers 348 kW rated power and massive 2050 N·m low‑speed torque. Reversible suction‑type cooling fan prevents dust clogging in dusty quarry environments. H/S/ECO multi‑mode selection matches full‑power rock breaking, standard excavation and fuel‑saving work; auto‑idle & auto‑idle‑stop functions effectively cut idle‑period fuel consumption.
High‑flow twin‑pump hydraulic system supports 37.8 MPa boost pressure for heavy hammer operation, generating powerful breakout force and stable continuous impact performance. Factory‑pre‑installed heavy‑duty breaker piping is ready for large‑size hydraulic hammer up to φ210 mm. Built‑in pressure‑release function and automatic hydraulic‑oil warm‑up guarantee reliable startup in low‑temperature environments.
Extra‑reinforced high‑rigidity boom & arm with thickened high‑stress sections resists heavy shock loads from rock breaking. Reinforced upper frame with anti‑collision beam and thick bottom protective cover improves anti‑deformation performance. Heavy‑duty mining‑grade undercarriage delivers huge drawbar pull for stable climbing and travelling over rough stony terrain, extending track‑chain service life in abrasive mine conditions.
Spacious ROPS‑FOPS certified dust‑sealed operator cabin adopts silicone‑oil damped mounting to reduce vibration. Equipped with Grammer air‑suspension heated seat, 10‑inch large color multi‑function monitor, multi‑view surveillance cameras, automatic air‑conditioning and Bluetooth‑enabled radio. Multiple LED working lamps greatly enhance visibility for night‑shift mining operations.
Grouped ground‑level service access simplifies daily inspection, greasing and filter replacement. Long‑maintenance‑interval components lower machine downtime. Global spare‑parts supply network keeps operating costs under control and maintains solid residual value for heavy‑duty mining fleets.
Multiple optional attachments: large‑sized heavy rock breaker, mining rock bucket, hydraulic quick coupler, reinforced triple‑grouser mining track shoes for diversified heavy‑condition conversion.
Interested in used KOBELCO SK600XD-11E excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
