KOBELCO SK250D
Specifications & Parameters
| Engine Model | 6D34‑TLE2A |
| Rated Power(kW) | 125 |
| Engine Revolutions(rpm) | 2100 |
| Maximum Torque(N·m) | 706 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 12-14 |
| Engine Displacement(L) | 7.8 |
| Emisson | China Stage III |
| Track width(mm) | 600 |
| Fuel Tank(L) | 340 |
| Hydraulic Tank(L) | 260 |
| Travel Speed(km/h) | 6 |
| Bucket Capacity(m³) | 1.0 |
| Bucket Digging Force(kN) | 165 |
| Boom Length(mm) | 6020 |
| Stick Length(mm) | 2980 |
| Maximum Excavation Radius(mm) | 10,500 |
| Maximum Digging Height(mm) | 7200 |
| Maximum Digging Depth(mm) | 7030 |
| Specifications(mm) | 10210×2990×3180 |
| Operating Weight(kg&ton) | 24,700 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2020 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Power and performance advantages
High power engine: commonly equipped with Hino J05E series turbocharged diesel engines, with a rated power of 131-137 kW, ensuring strong power output
Efficient hydraulic system: Adopting a dual variable displacement axial piston pump, the maximum flow rate of the main pump reaches 2 × 246 L/min, the working pressure is 34.3 MPa, the response is fast, and the energy consumption is low
Excellent homework ability:
The maximum excavation depth reaches 7000 mm
Maximum excavation radius 10140-10310 mm
The digging force of the bucket is 170 kN, and the digging force of the boom is 119 kN
Structure and stability
Heavy duty chassis design: equipped with wide tracks (600 mm wide), with a ground pressure ratio of only 54 kPa, balancing passability and ground protection
Weight optimization: Increase the balance and anti overturning ability during weight lifting operations
Operation and Comfort
Ergonomic cab: wide field of view, low noise, standard air conditioning and shock-absorbing seats, enhancing operational comfort
Precise control: Hydraulic pilot control system, responsive handle, supports multiple operating modes (such as S/H/A/B modes)
Widely applicable scenarios
Suitable for various working conditions such as earthworks, mining, infrastructure construction, river dredging, etc
Interested in used KOBELCO SK250D excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry

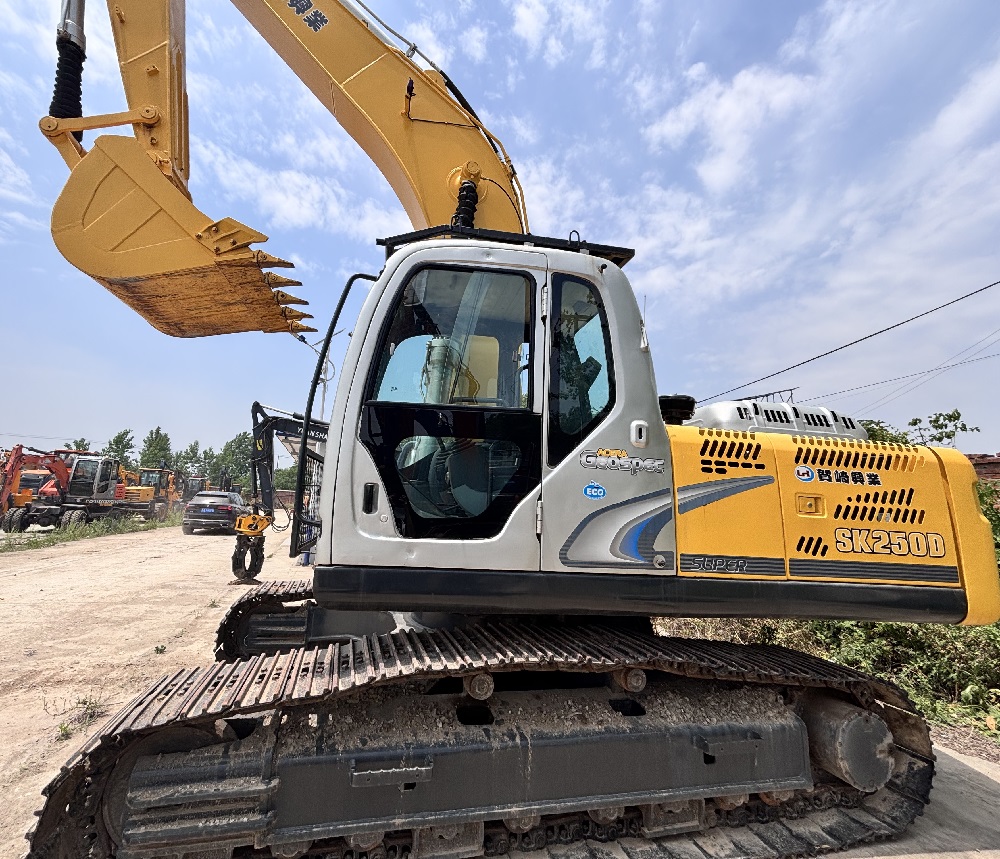

Photos
