KATO HD820-R5
Specifications & Parameters
| Engine Model | MITSUBISHI 4M50TL |
| Rated Power(kW) | 113 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 565 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 7.3-9 |
| Engine Displacement(L) | 4.89 |
| Emisson | Tier3 |
| Track width(mm) | 600 |
| Fuel Tank(L) | 400 |
| Hydraulic Tank(L) | 165 |
| Travel Speed(km/h) | 5.5 |
| Bucket Capacity(m³) | 0.8 |
| Bucket Digging Force(kN) | 140 |
| Boom Length(mm) | 5630 |
| Stick Length(mm) | 2930 |
| Maximum Excavation Radius(mm) | 9680 |
| Maximum Digging Height(mm) | 6840 |
| Maximum Digging Depth(mm) | 6700 |
| Specifications(mm) | 9510×2820×3020 |
| Operating Weight(kg&ton) | 20500 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2018 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features

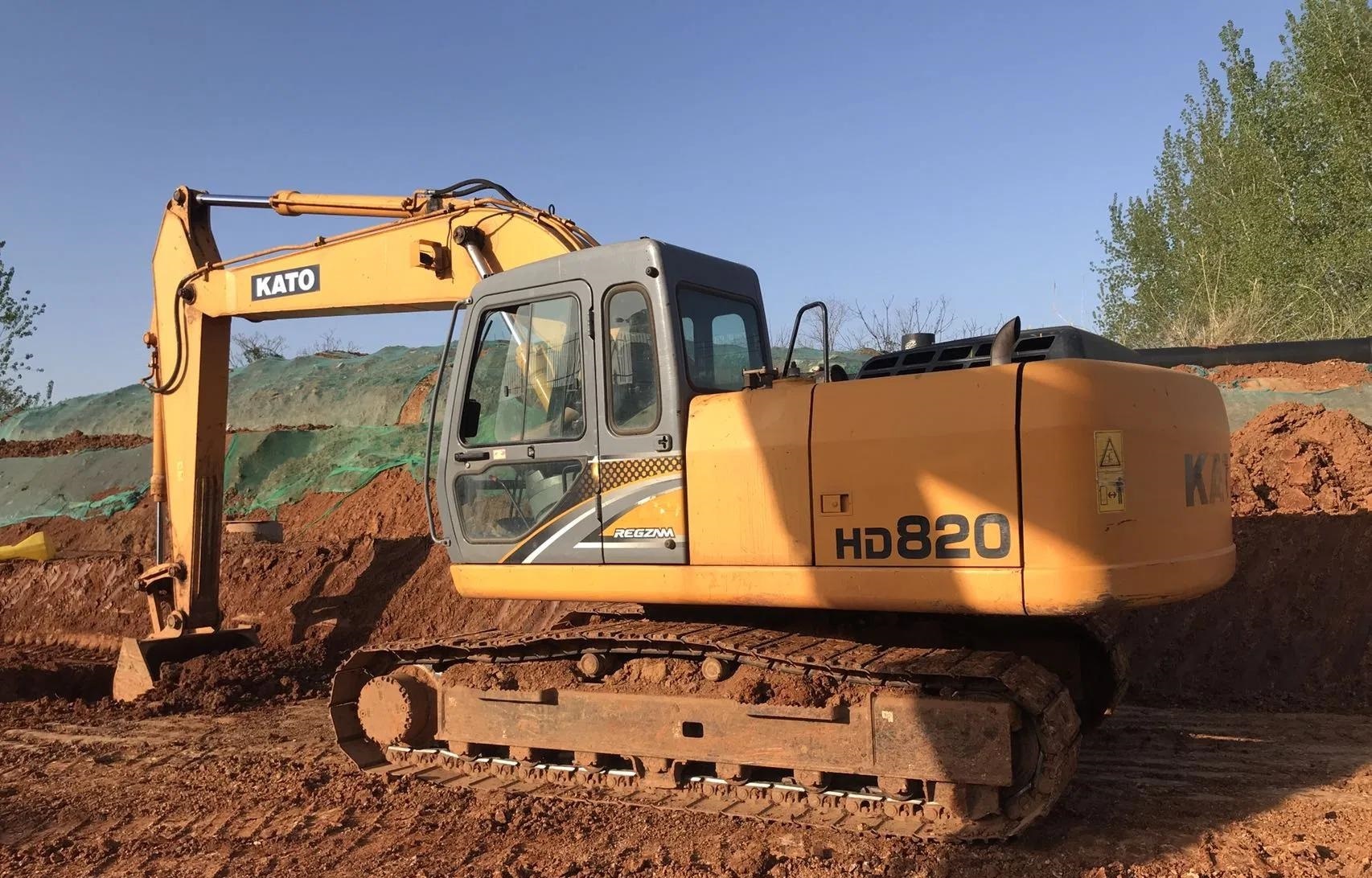

The 20.5‑ton KATO HD820‑R5 REGZAM is a reliable 20‑ton‑class excavator, widely deployed for general construction, earth‑moving, quarry and road‑building projects. It delivers balanced power output, fuel‑economy and long‑term durability for heavy‑cycle site operations.
Original Mitsubishi 4M50‑TL turbo intercooled common‑rail 4‑cylinder diesel engine outputs strong low‑speed torque. Optimized fuel combustion reduces overall fuel consumption, adapts to variable‑quality fuels for overseas worksites without complex after‑treatment maintenance.
KATO APC300 high‑flow load‑sensing hydraulic system boosts digging force by 10% versus older HD820R model. Multiple working modes cover heavy excavation, standard earthwork and ECO fuel‑saving mode, providing snappy smooth compound movements and shorter cycle times for continuous high‑productivity work.
Heavy‑duty reinforced boom and arm improve impact‑resistance for harsh quarry and stone‑handling conditions. Robust undercarriage components grant stable travelling and lifting performance on uneven, rough ground.
Spacious ROPS‑FOPS certified cabin with six‑point vibration‑dampening mounting reduces noise and shock. Fully automatic air‑conditioning and multi‑function color monitor keep operators comfortable and well‑informed of machine real‑time status.
Parallel‑arranged cooling core effectively resists dust clogging under high‑temperature conditions. Major service points are ground‑accessible; grouped triple fuel‑filter layout shortens daily inspection and filter‑replacement time. Abundant global spare‑parts resources lower running cost and preserve solid residual value for rental fleets.
Multiple optional attachments: hydraulic quick coupler, heavy rock breaker, reinforced heavy‑duty track shoes for versatile job‑site conversion.
