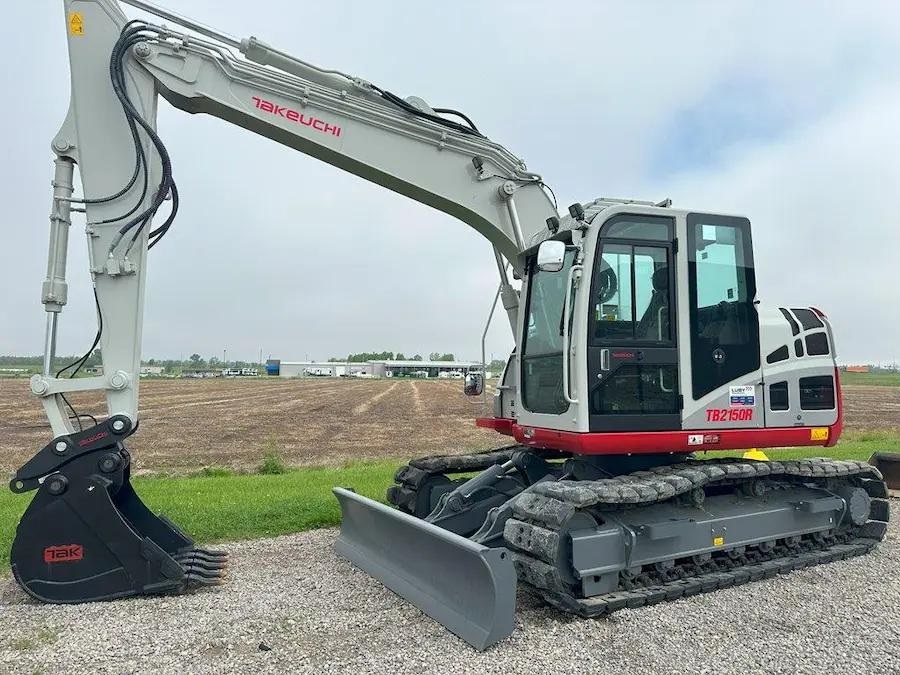

TAKEUCHI TB2150R
Specifications & Parameters
| Engine Model | ISUZU 4HK1X |
| Rated Power(kW) | 110 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 510 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 7.2-8.8 |
| Engine Displacement(L) | 5.193 |
| Emisson | Tier 4 |
| Track width(mm) | 600 |
| Fuel Tank(L) | 390 |
| Hydraulic Tank(L) | 142 |
| Travel Speed(km/h) | 5.5 |
| Bucket Capacity(m³) | 0.95 |
| Bucket Digging Force(kN) | 138 |
| Boom Length(mm) | 5660 |
| Stick Length(mm) | 2900 |
| Maximum Excavation Radius(mm) | 9560 |
| Maximum Digging Height(mm) | 6810 |
| Maximum Digging Depth(mm) | 6480 |
| Specifications(mm) | 9460×2800×3050 |
| Operating Weight(kg&ton) | 21400 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2023 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
The 15.6‑ton TAKEUCHI TB2150R is Takeuchi’s largest reduced‑tail‑swing excavator, combining compact short‑tail layout with heavy‑duty digging performance. Well‑suited for urban construction, utility projects, demolition and earth‑moving work where space is limited yet high power is required.
Deutz TCD3.6 L4 turbo diesel engine delivers 85 kW power output, compliant with Stage V / Tier 4 emission standards. Equipped with DOC+SCR after‑treatment system, stable torque output adapts to various operating conditions; multiple working modes optimize power output and fuel consumption for different job‑site demands.
High‑performance open‑center variable‑displacement hydraulic system delivers powerful breakout force and fast digging cycles. Three standard auxiliary hydraulic circuits including high‑flow circuit support various attachments; precise pilot joystick control provides smooth and responsive compound movements.
Robust fixed mono‑boom design enhances lifting capacity and overall stability. Standard long stick delivers outstanding digging depth; two‑piece boom is available as option. Wraparound heavy‑duty counterweight improves stability and protects core machine components against site‑impact damage.
Spacious ROPS‑FOPS certified cabin features 7‑inch color multi‑information display, Bluetooth radio, air‑suspension high‑back seat and automatic climate control. 270‑degree surround‑view camera plus multi‑LED working lights greatly improve all‑round visibility for night‑time and confined‑space operations.
Convenient ground‑accessible service layout simplifies daily inspection and component replacement. Large‑capacity cooling system prevents overheating under heavy‑load continuous operation. Solid global spare‑parts availability guarantees low operating cost and good residual value for rental fleets.
Multiple optional configurations: two‑piece boom, hydraulic quick coupler, rock breaker, steel / rubber track pads for diversified working‑condition adaptation.
