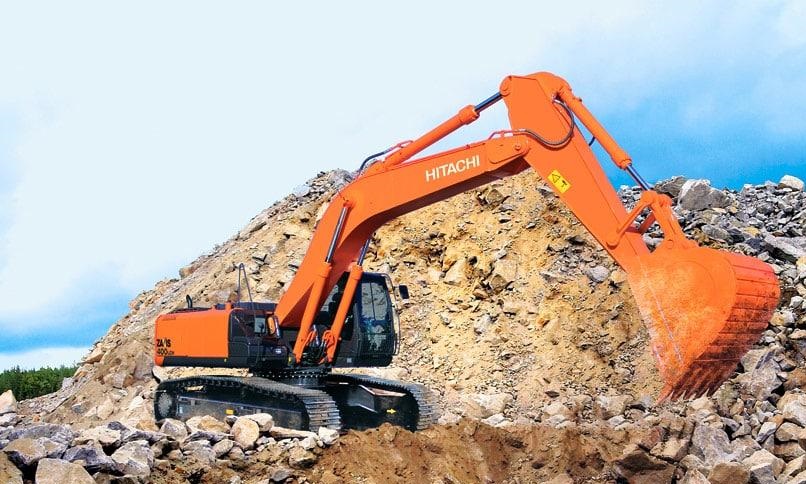

Hitachi ZX400LCH-5A
Specifications & Parameters
| Engine Model | Isuzu GH-6HK1XKSA-01 |
| Rated Power(kW) | 190 |
| Engine Revolutions(rpm) | 1900 |
| Maximum Torque(N·m) | 1037 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 28-31 |
| Engine Displacement(L) | 7.79 |
| Emisson | Stage III |
| Track width(mm) | 600 |
| Fuel Tank(L) | 630 |
| Hydraulic Tank(L) | 180 |
| Travel Speed(km/h) | 5 |
| Bucket Capacity(m³) | 2.1 |
| Bucket Digging Force(kN) | 246 |
| Boom Length(mm) | 6450 |
| Stick Length(mm) | 3200 |
| Maximum Excavation Radius(mm) | 11100 |
| Maximum Digging Height(mm) | 10400 |
| Maximum Digging Depth(mm) | 7310 |
| Specifications(mm) | 11330×3290×3390 |
| Operating Weight(kg&ton) | 38800 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2022 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Isuzu six‑cylinder Tier3 engine without urea aftertreatment delivers robust low‑speed torque for heavy‑duty deep digging and rock‑loading tasks, compatible with low‑grade diesel to reduce total‑cost‑of‑ownership for overseas quarry, river‑project and heavy‑construction clients.
LCH heavy‑dig long‑front configuration with reinforced boom & stick achieves greater digging depth and extended working reach compared to standard ZX400LC, well‑suited for river dredging, high‑slope trimming and deep foundation excavation.
HIOS III intelligent regenerative load‑sensing hydraulic system provides seamless compound movements, balancing high productivity and outstanding fuel efficiency for non‑stop long‑shift heavy‑load operation.
Upgraded wide‑gauge heavy‑duty undercarriage expands track‑ground contact area, prevents sinking on soft riverbed and muddy ground, and delivers superior stability during heavy lifting and rock‑handling cycles.
Mining‑grade thickened boom, stick and X‑frame adopt high‑abrasion‑resistant steel with full‑penetration welding; heavy‑duty track assemblies resist continuous impact and abrasion to extend service intervals and cut maintenance frequency.
Factory‑installed high‑flow bi‑directional auxiliary hydraulic circuit supports heavy rock breakers, grapples and quick couplers without extra refitting for multi‑purpose site applications.
Pressurized fully‑sealed deluxe operator cab equipped with suspension shock‑absorbing seat, color multi‑function monitor, rear‑view camera and full‑auto air‑conditioning relieves operator fatigue during prolonged heavy‑duty working cycles.
All core daily service points are ground‑level accessible; fluid and filter replacement can be completed without climbing onto the machine, minimizing equipment maintenance downtime.
Interested in used Hitachi ZX400LCH-5A excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
