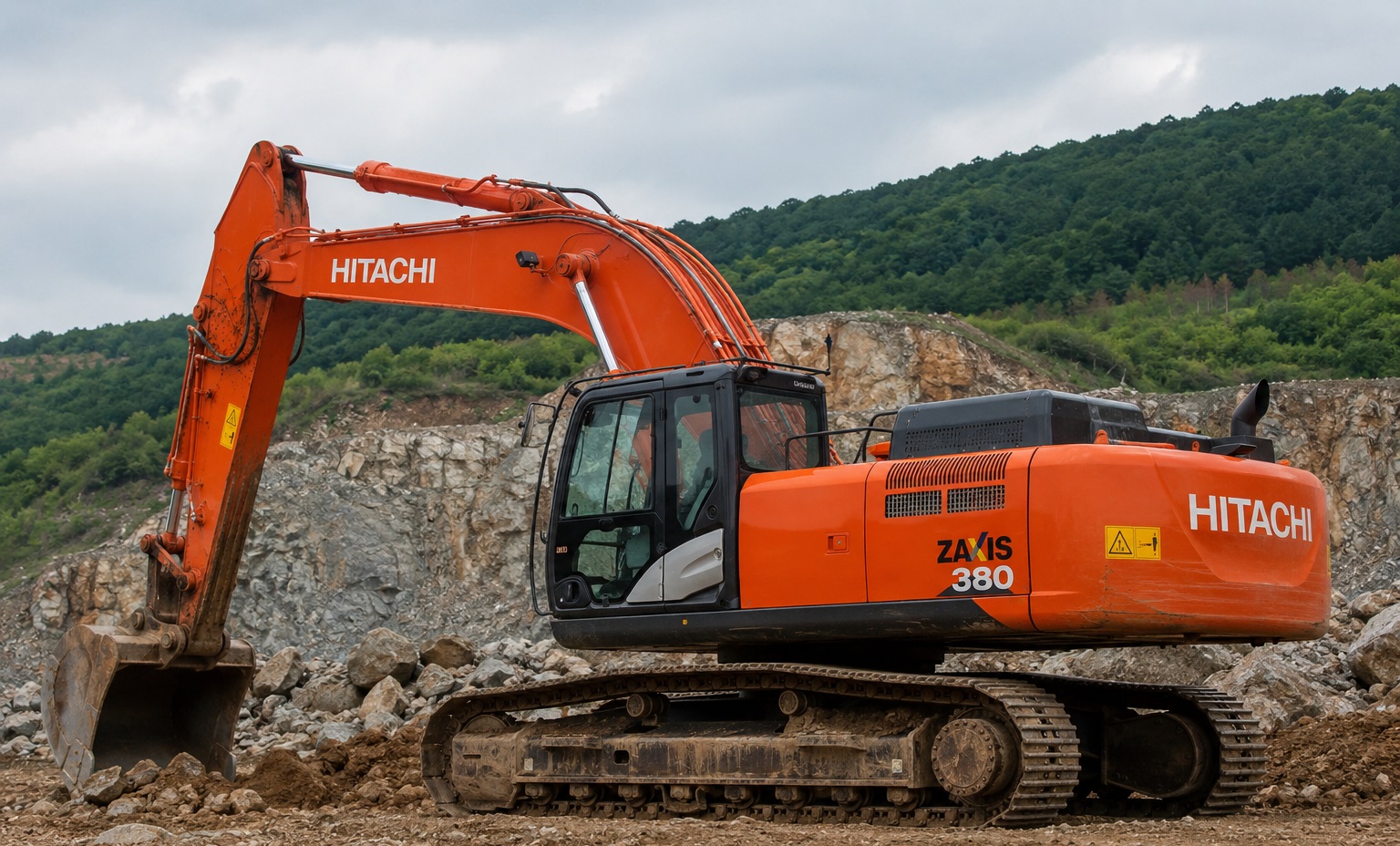

Used Hitachi ZX380
Parameters
| Engine Model | Isuzu 6HK1 |
| Rated Power(kW) | 202 |
| Engine Revolutions(rpm) | 1900 |
| Maximum Torque(N·m) | 1050 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 26-29 |
| Engine Displacement(L) | 7.8 |
| Emisson | Tier 4 |
| Track width(mm) | 600 |
| Fuel Tank(L) | 630 |
| Hydraulic Tank(L) | 180 |
| Travel Speed(km/h) | 5 |
| Bucket Capacity(m³) | 2.13 |
| Bucket Digging Force(kN) | 280 |
| Boom Length(mm) | 6450 |
| Stick Length(mm) | 3200 |
| Maximum Excavation Radius(mm) | 11100 |
| Maximum Digging Height(mm) | 7180 |
| Maximum Digging Depth(mm) | 7380 |
| Specifications(mm) | 11280×3390×3600 |
| Operating Weight(kg&ton) | 37400 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2022 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
Features
Isuzu 7.8L Tier3 engine without urea aftertreatment delivers strong low-speed torque for long-hour loading, compatible with low-grade diesel to cut total ownership cost.
LC extended undercarriage with long track contact area prevents sinking on soft ground; heavy-duty heat-treated track components extend service life on quarry sites.
HIOS III regenerative load-sensing hydraulics with 3 working modes balance high production and fuel efficiency for loading & breaking tasks.
Full mining-grade reinforced structure with thickened wear-resistant steel on boom, stick and frame reduces breakdown frequency.
Factory bi-directional high-flow auxiliary hydraulics support breakers, grapples and quick couplers without extra refitting.
Pressurized fully sealed low-noise deluxe cab with shock-absorbing seat, 8-inch color monitor, rear-view camera and full auto air conditioning eases operator fatigue.
All service access points are ground-level; no climbing required for fluid and filter replacement to minimize maintenance downtime.
