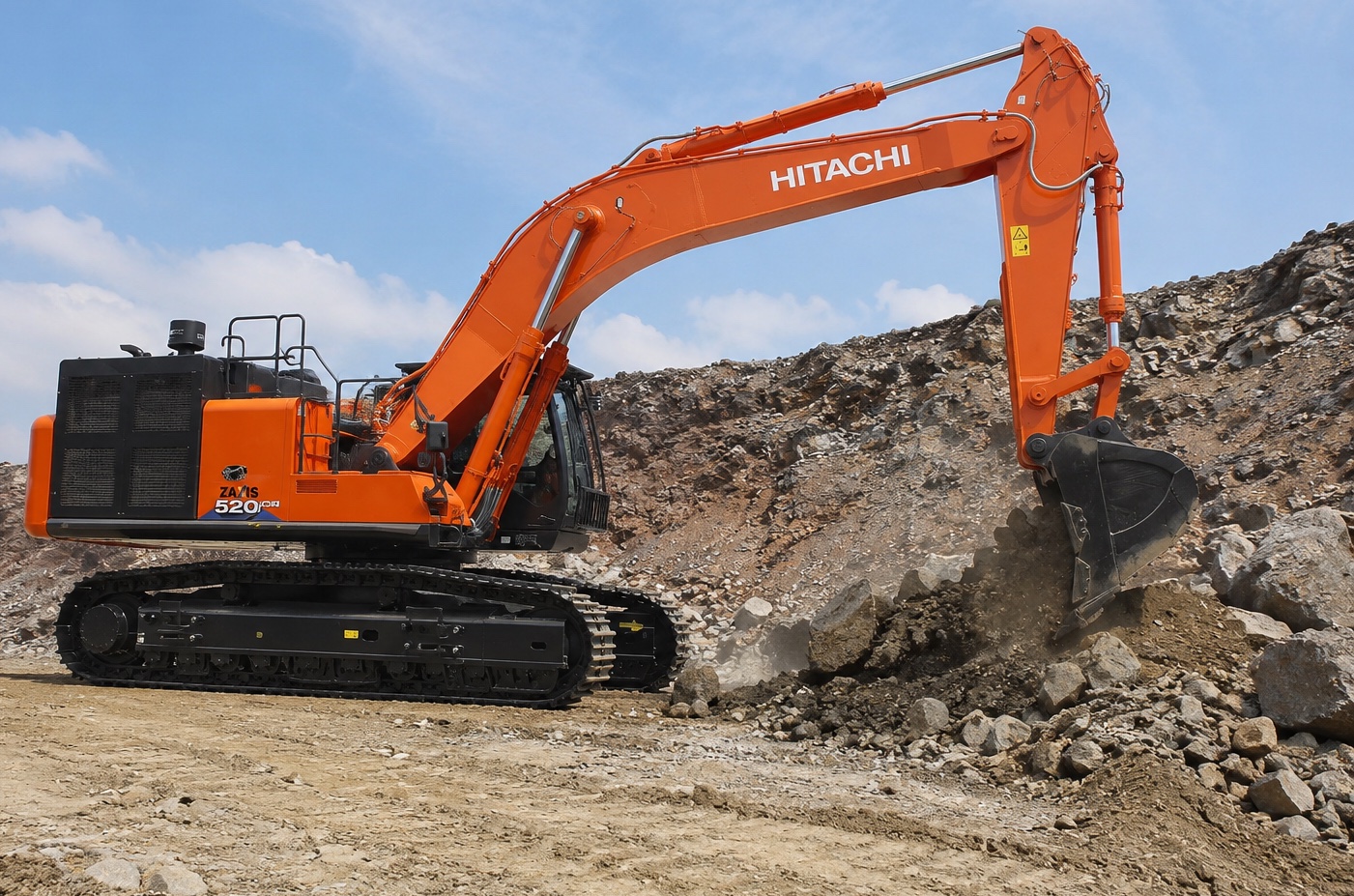

Hitachi ZX520LCH
Specifications & Parameters
| Engine Model | Isuzu 6WG1-XDQAG-04A-C4 |
| Rated Power(kW) | 296 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 2050 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 30-35 |
| Engine Displacement(L) | 15.681 |
| Emisson | Tier 4 |
| Track width(mm) | 600 |
| Fuel Tank(L) | 675 |
| Hydraulic Tank(L) | 290 |
| Travel Speed(km/h) | 5.3 |
| Bucket Capacity(m³) | 4 |
| Bucket Digging Force(kN) | 296 |
| Boom Length(mm) | 7000 |
| Stick Length(mm) | 3400 |
| Maximum Excavation Radius(mm) | 12060 |
| Maximum Digging Height(mm) | 7560 |
| Maximum Digging Depth(mm) | 7860 |
| Specifications(mm) | 12040×3522×3360 |
| Operating Weight(kg&ton) | 49000 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2020 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Isuzu 6WG1 engine, 295kW net power, 15.6L displacement, 2050N·m peak torque
HIOS‑V intelligent hydraulic system, fast and smooth compound actions with improved fuel efficiency
Heavy‑duty reinforced front working device for heavy‑load rock mining applications
Robust LC heavy‑duty undercarriage, durable track components for harsh mine sites
Panoramic bird‑view monitoring system for enhanced job‑site safety
Spacious cab with air‑suspension seat, low noise and ergonomic controls
China Tier4 compliant, stable continuous output for long‑hour mining operations
Interested in used Hitachi ZX520LCH excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
Photos
